Transmission Fluid Temperature Monitoring: Why It Matters

If you've ever towed a heavy trailer up a long hill or sat in stop-and-go traffic on a hot summer day, your transmission has been working overtime. And like your engine, your transmission generates heat. But unlike engine overheating—which drivers often know to avoid—transmission fluid temperature (TFT) is something most people overlook until it's too late. Let's change that.

This guide dives deep into why transmission fluid temperature monitoring is critical, how it affects your vehicle's health, how to monitor it, and what you can do to avoid costly damage.

What Is Transmission Fluid Temperature?

Transmission Fluid Temperature (TFT) refers to the operating temperature of the automatic transmission fluid inside your vehicle's transmission system. It directly impacts how efficiently the transmission functions. Too hot? The fluid breaks down. Too cold? The transmission shifts poorly.

Normal operating range: 175°F to 200°F (79°C to 93°C)
Danger zone: Over 220°F (104°C)

Once fluid exceeds 240°F, its lifespan drops dramatically. For every 20°F above 200°F, the transmission fluid life is cut in half. At 260°F, most fluids will oxidize, varnish will form, and seals will harden—leading to total transmission failure.

Why Is Monitoring Transmission Temperature Important?

1. Prevent Overheating: High temperatures account for 90% of automatic transmission failures. Heat is the number one enemy.

2. Extend Transmission Life: Maintaining proper TFT can more than double your transmission's lifespan.

3. Protect Your Investment: Transmission replacements or rebuilds often cost $2,000–$5,000. A $50 sensor or OBD2 reader could save you thousands.

4. Better Performance Under Load: If you tow, haul heavy cargo, or drive in extreme weather, your transmission works harder—and heats up faster.

5. Early Warning System: Sudden temperature spikes can indicate deeper issues, such as low fluid, slipping clutch packs, or clogged coolers.

Symptoms of High Transmission Fluid Temperature

• Warning light or message on dash (e.g., "Transmission Over Temp")

• Delayed or erratic shifting

• Slipping transmission

• Burnt-smelling fluid

• Reduced fuel efficiency

• Limp mode activation

Ignoring these signs can lead to serious damage, especially if the root cause is not addressed quickly.

Common Causes of High Transmission Temperature

• Low fluid level

• Contaminated or old fluid

• Clogged or leaking transmission cooler

• Faulty torque converter

• Heavy towing without auxiliary cooler

• Driving in mountainous or stop-and-go traffic conditions

• Malfunctioning temperature sensor

Even minor issues can create a chain reaction that overheats your transmission.

How to Check Transmission Fluid Temperature

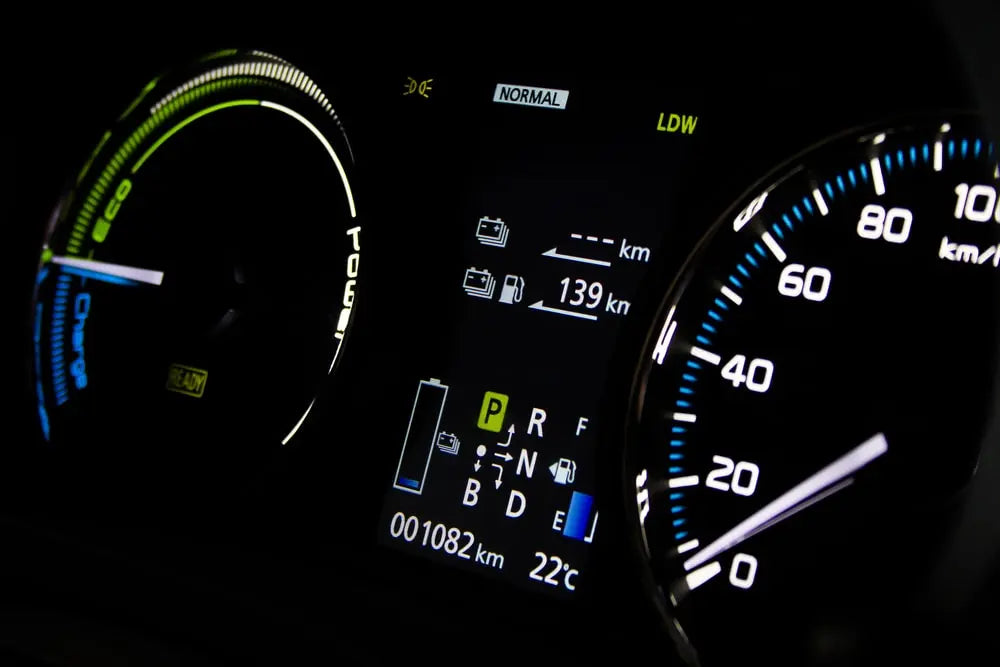

1. Built-in Dashboard Gauge: Many modern trucks and SUVs offer a built-in TFT gauge, especially towing-capable models like the Ford F-150 or Chevy Silverado.

2. OBD2 Scanner: A good OBD2 scanner with live data capabilities allows you to monitor TFT in real time. Look for PIDs labeled "Transmission Temp" or "TFT."

Take CGSULIT SC880 as the example, after connect the sc530 with the vehicle, click the car icon and then enter diagnose page. Select Transmission control module to locate live data. Finally, check the transmission temp.

3. Aftermarket Transmission Temperature Gauge: Install a standalone gauge wired to a dedicated sensor. These are popular in towing vehicles and high-performance builds.

4. Mobile Apps with Bluetooth Adapters: Use a wireless OBD2 adapter (e.g., OBDLink MX+, BlueDriver) paired with apps like Torque Pro or Car Scanner to read TFT.

Best OBD2 Scanners & Tools for Transmission Temp Monitoring

• CGSULIT SC530 Pro – Vehicle-specific scanner with TFT support

• OBDLink MX+ – Bluetooth, compatible with multiple apps

• Autel MaxiCOM MK808 – Professional tool with transmission module access

• INNOVA 5610 – Affordable scanner with live transmission data

What Is a Safe Transmission Fluid Temperature?

The goal is to keep your TFT under control during demanding conditions.

FAQ: Transmission Fluid Temperature Monitoring

Q: Can low fluid cause high transmission temps?
A: Yes, low fluid leads to poor lubrication and increased friction, which generates more heat.

Q: What is P0710?
A: It’s a diagnostic trouble code indicating a malfunction in the transmission fluid temperature sensor circuit.

Q: How accurate are OBD2 TFT readings?
A: Most modern OBD2 readings are accurate within a few degrees. For precision, an aftermarket sensor may help.

Q: Is a transmission cooler worth it?
A: If you tow regularly or live in a hot climate, absolutely. It can reduce TFT by 20–30°F.

Q: What’s the cost of replacing a TFT sensor?
A: $50–$250 depending on vehicle make and labor costs.

Final Thoughts

Monitoring your transmission fluid temperature isn’t just for mechanics or high-performance drivers. It's for anyone who wants to protect their vehicle’s most expensive drivetrain component.

With the rise of OBD2 technology and affordable apps, there’s no excuse not to stay informed. Even if you only tow a few times a year or endure the occasional summer traffic jam, real-time TFT monitoring gives you peace of mind.

Don’t wait until your transmission throws a costly tantrum. Watch the heat—and drive smart.
