Description
CGSULIT SC530 GM Scan Tool Highlights:
Extensive GM Vehicle Compatibility
Supports a wide range of GM (General Motors) models, including Chevrolet (Chevy), Buick, GMC Duramax Diesel, Cadillac, and Hummer (1996-2023 keep updating).

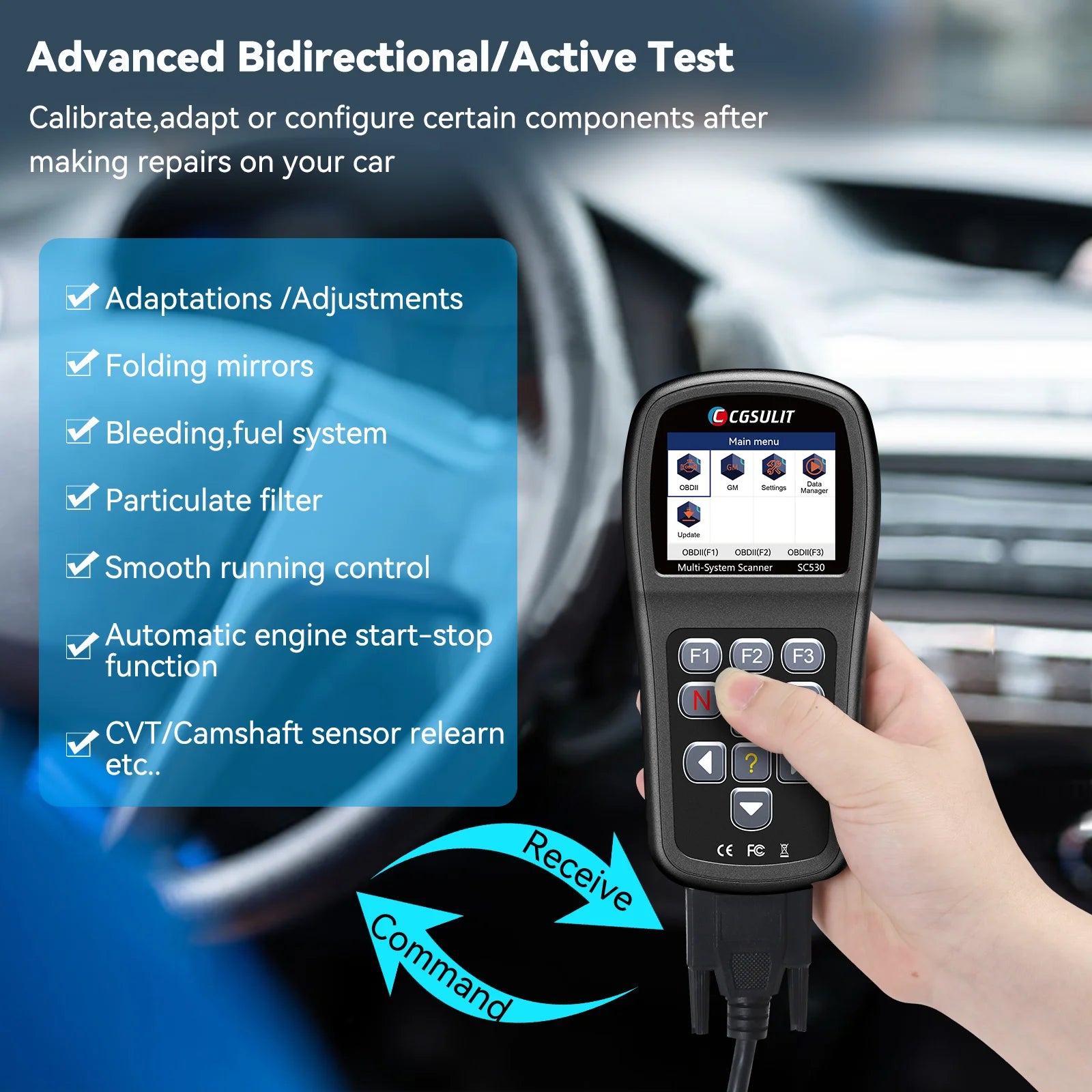

Bi-Directional Control for Active Testing
Perform real-time active tests with bi-directional control to verify the functionality of control modules and actuators. Ideal for both amateur and professional mechanics.
Comprehensive Full-System Diagnostics
Diagnose all systems from the engine to transmission, ABS, SRS, and more.
30+ Reset Services at Your Fingertips
Access essential reset functions like transmission relearn, SAS calibration, ABS & airbag system resets, crankshaft/camshaft sensor relearn and more with ease.
Complete OBD2 Functionality
Perform all standard OBD2 functions, including reading and erasing diagnostic trouble codes (DTCs), viewing freeze frame data, and accessing live vehicle data from any 1996+ OBD2-compatible vehicle.
Real-Time Data Monitoring
Monitor live data such as engine oil temperature, RPM, transmission fluid temperature, and more, to help you pinpoint issues and track vehicle performance in real time.
Free Lifetime Software Updates
Enjoy FREE lifetime software updates to keep your SC530 up-to-date with the latest GM vehicle models, ensuring compatibility with new features and diagnostics.

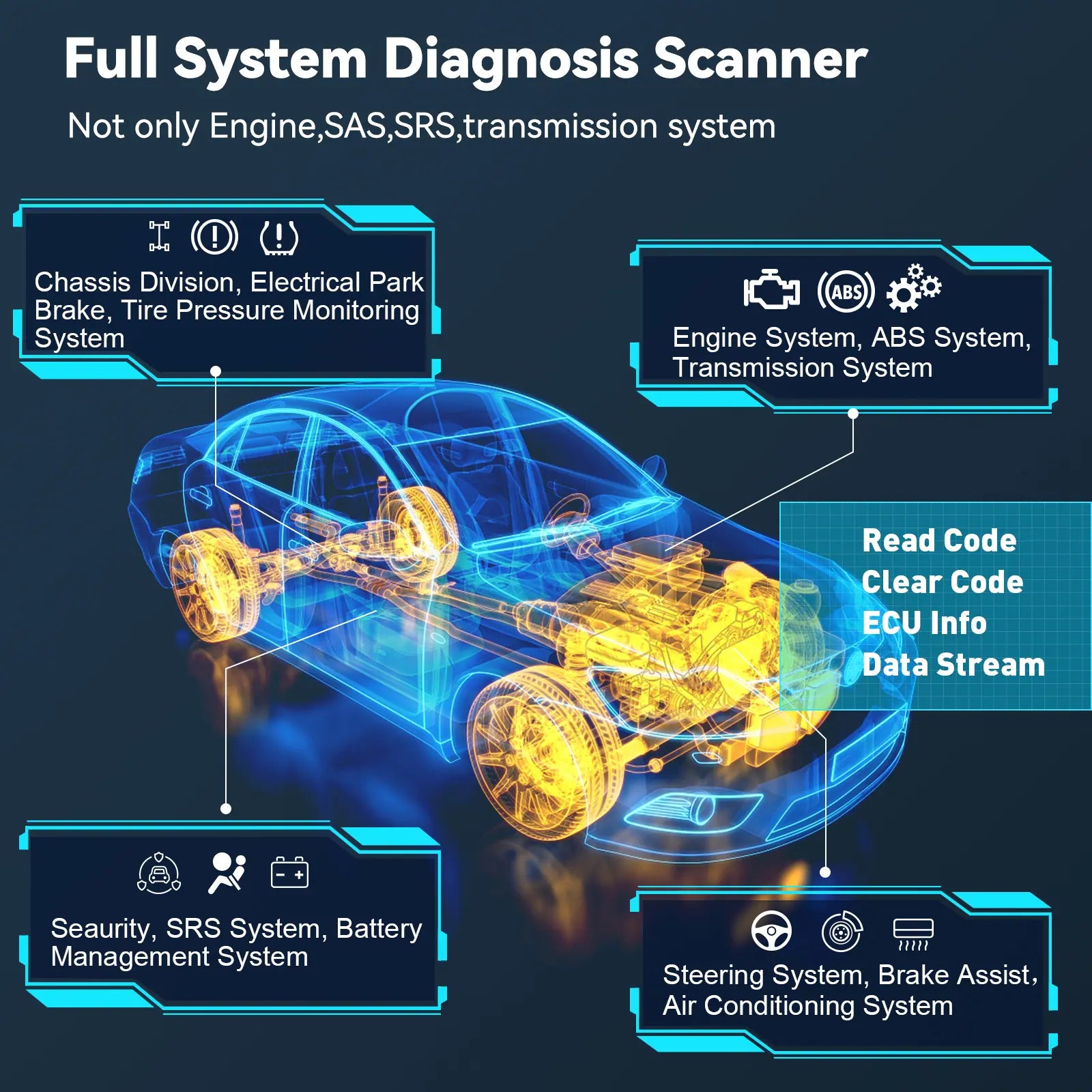

CGSULIT SC530 GM Scan Tool Supports Full-system Diagnose:
SC530 auto scanner can diagnose all systems for GM vehicles. It is one of the best GM scan tools with relearn capabilities.
(The diagnostic systems supported by the scanner may vary depending on the vehicle model.This is just a selection of supported systems. Contact us for more details.)
| System Category | Supported Systems |
|---|---|
| Powertrain & Transmission Systems | Engine System Transmission System Fuel Pump Control Modules Fuel Injection Control Modules All-Wheel Drive Control VG Transfer Case Module Electronic Selector Module And More |
| Safety & Security Systems | ABS (Anti-lock Braking) System SRS (Airbag) System Immobilizers Theft Deterrent And More |
| Body Control Systems | Body Control Module Drivers Door Module Seat Memory Module HVAC Instrument Cluster And More |
| Entertainment & Information Systems | Digital Radio Standard Radio Amplifier And More |
| Gateway & Communication Systems | Central Gateway And More |
| Tire & Brake Systems | TPMS (Tire Pressure Monitoring) System EPB (Electronic Parking Brake) System And More |
| Steering & Handling Systems | SAS (Steering Angle Sensor) System And More |
CGSULIT SC530 GM Scan Tool Offers Over 25 Advanced Reset Services.
SC530 GM tool is an abs bleed scan tool, a transmission code reader, a bcm scanner tool, a crankshaft/camshaft relearn tool and more. Because there are over 25 advanced reset services on it.
Oil Lamp Reset
Resets the Engine Oil Life system after an oil change.
Crankshaft/Camshaft Relearn
Recalibrates the engine control system after replacing crankshaft or camshaft sensors.
EPB (Electronic Park Brake) Reset
Ensures proper function and safety of the electronic parking brake system.
DPF (Diesel Particulate Filter) Reset
Supports DPF regeneration, component replacement, and teach-in after ECU replacement.
SAS (Steering Angle Sensor) Reset
Clears fault memory and calibrates the steering angle sensor.
ABS Bleeding
Removes air from the ABS system to ensure firm brake pedal feel.
Transmission Relearn
Helps the ECU and TCU learn your driving pattern to optimize transmission behavior.
Injector Coding
Codes new injectors after replacement.
Airbag Reset
Clears airbag collision fault indicators.
A/F (Air/Fuel Ratio) Reset
Sets or learns the air/fuel ratio parameters.
Seat Calibration
Matches seats with the memory function after replacement or repair.
Windows/Door Calibration
Restores automatic window functionality and recovers ECU memory.
Battery Reset (BRT)
Monitors battery health and registers battery replacement.
More functions
Throttle relearn, Clutch adaption, Turbo, Language change, CVT, Prime Fuel Pump, Headlamp reset, EVAP test, Change Tire size, Tcmoil, etc.
Warm Tips: Special functions and compatibility may vary depending on your vehicle's year and model. Contact us for compatibility checks if needed before purchasing.
Frequently Asked Questions
How to Access Special Functions?
- Click the Car Make Icon on the homepage.
- Select your car model (Auto VIN or manual select).
- Go to the Diagnostic Page.
- Choose Control Module.
- Select the module to access Special Functions.

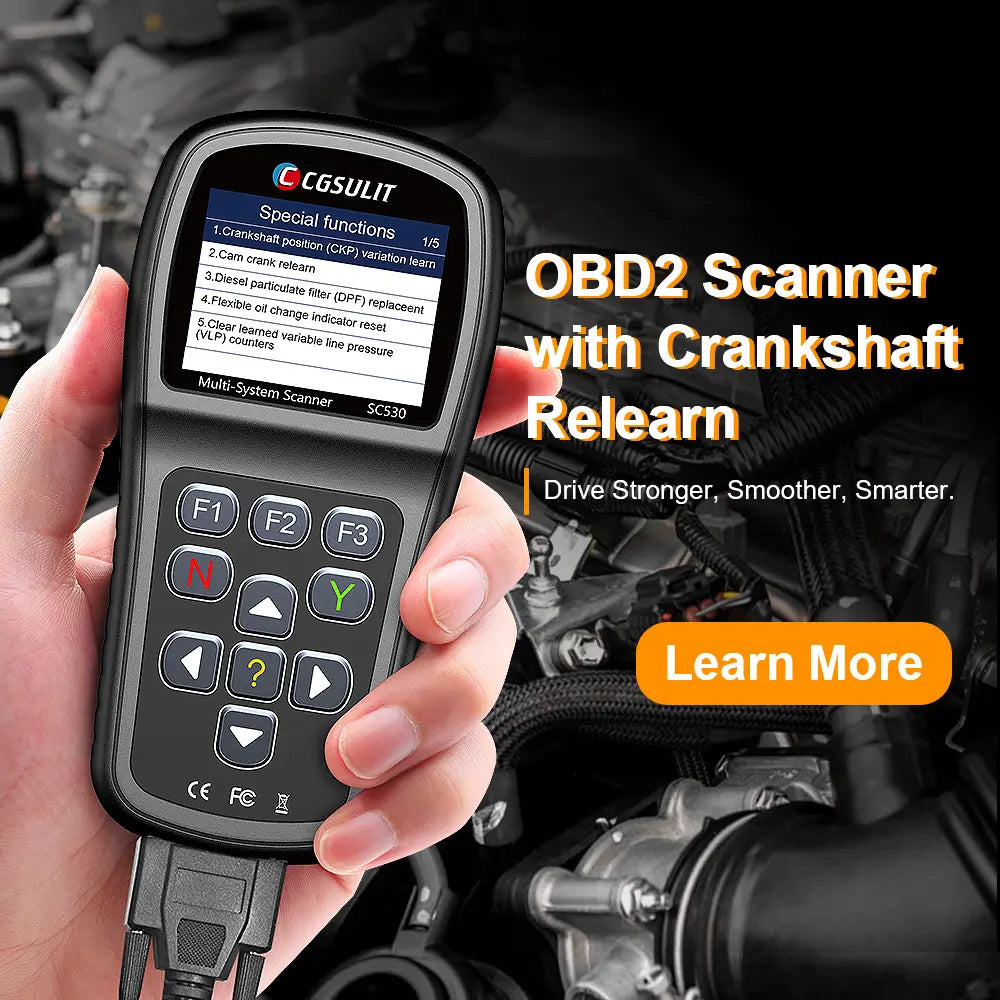

How to Perform a crankshaft relearn on GM models with SC530?
- Plug the OBD2 scanner into your vehicle's OBD2 port.
- Select your car's make and model, then choose the 'Engine Control Module (TCM)'.
- Next, go to "Special Functions" and find the "Crankshaft Position (CKP) Variation Learn" option.
- Follow the tips on the scanner to complete the process.
- Learn More>>

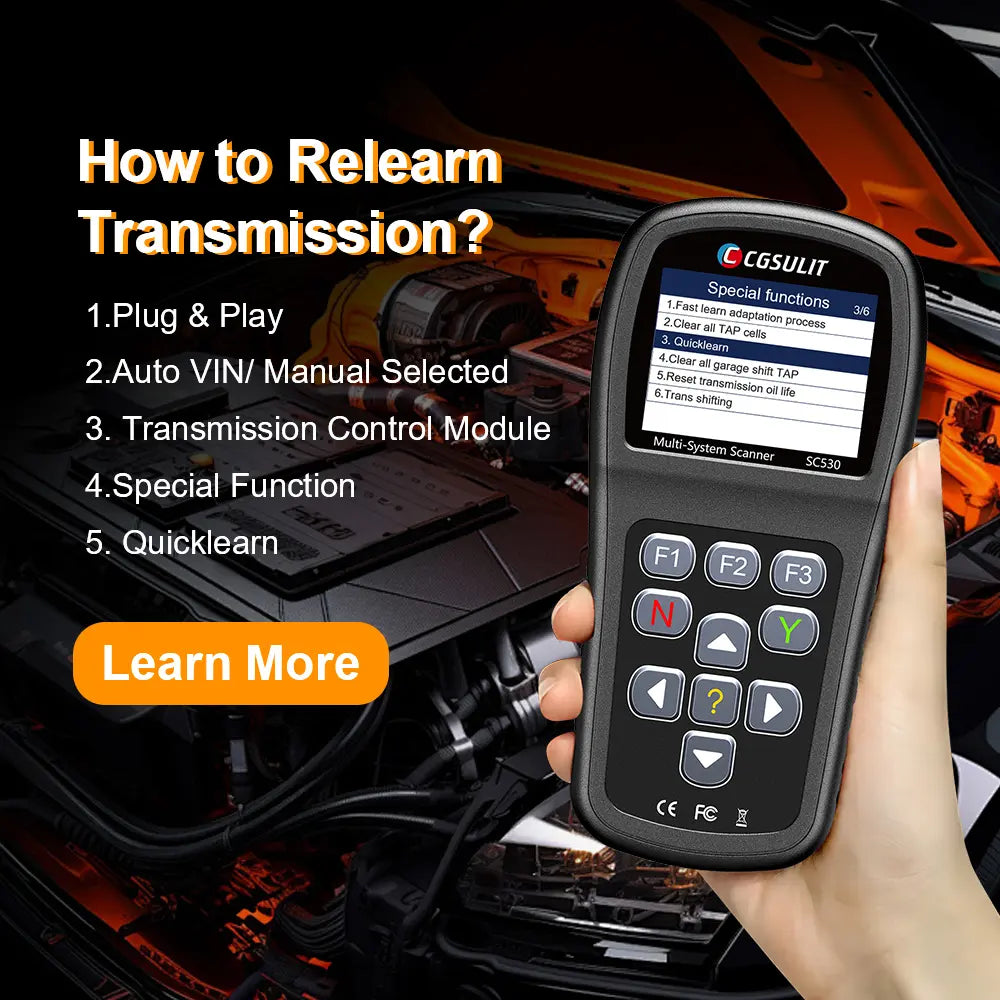

How to Do a Quick Transmission Relearn on GM models with SC530?
- Plug the OBD2 scanner into your vehicle's OBD2 port.
- Select your car's make and model, then choose the 'Transmission Control Module (TCM)'.
- Navigate to the Special Functions menu and select 'Quicklearn' / 'Compulsory learning mode--AT learning mode' to initiate the relearn process.
- Follow the tips on the scanner to finish quicklearn.
- Learn More>>

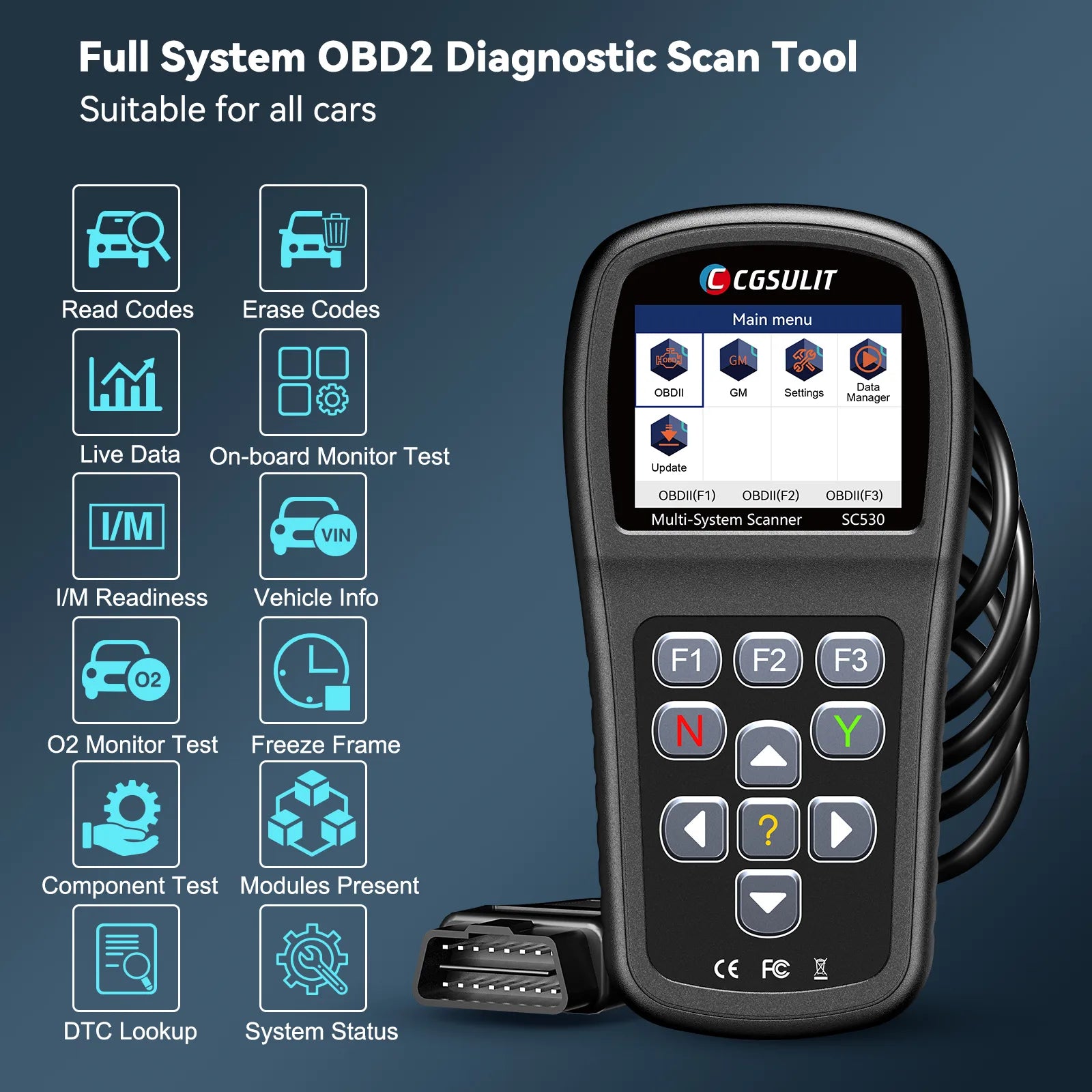

CGSULIT SC530 GM Scan Tool Supports full 10 OBD2 functions.
Note: OBD functions are compatible with all vehicle brands, so you won't need an additional scanner for other cars.
Read & Clear Fault Codes
Turn off Malfunction Indicator Light (MIL).
Live Data
View key parameters like RPM, temperature, speed, and more.
Freeze Frame Data
Access vehicle data during a fault.
I/M Readiness
Check vehicle readiness for emissions testing.
Oxygen Sensor Test & On-Board Monitoring
View test results and system statuses.
DTC Lookup
Built-in library with error code definitions.
Vehicle Information & Component Tests
Retrieve vehicle data and run system tests.
Print & Share Data
Print or send diagnostic results to your mechanic.
Multilingual Support
Available in English, Spanish, Portuguese, German, French, Dutch, Japanese, Italian, Russian, and more.
Package List:
- CGSULIT SC530
- OBD2 Diagnostic Cable
- USB Cable
- User Manual
- Portable Nylon Pouch
- Outer Carton
| Product |
SC530 |
SC880 |
SC870 |
SC860 |
SC630 |
SC301 |
SC204 |
|---|---|---|---|---|---|---|---|
| Picture |  |
 |

|
 |
 |
 |
 |
| Price（USD） |
$149.98 |
$288 |
$173.64 |
$198.07 |
$139.98 |
$53.99 |
$45.99 |
| Full OBD2/EOBD Functions | √ | √ | √ | √ | √ | √ | √ |
| Works On Brands | One Brand | Multiple Brands | Multiple Brands | Multiple Brands | Multiple Brands | Multiple Brands | Multiple Brands |
| Works On Systems | ALL | ALL | ALL | ALL | ABS, SAS, SRS, ENGINE | ENGINE | ENGINE |
| Active Test/Bidirectional Control | √ | √ | |||||
| Special Functions |
|
|
|
1. ABS Bleeding 2.EPB Reset 3.Oil Reset 4.Battery Registration 5.Injector Coding 6.SAS Calibration 7.TPS Reset 8.Throttle Matching |
|
*Compatibility may vary from different car makes, welcome to check with us if need.If you have any other questions,please contact with us.(marketing@cgsulit.com)
