How to Relearn Throttle Body with the OBD2 Scanner?

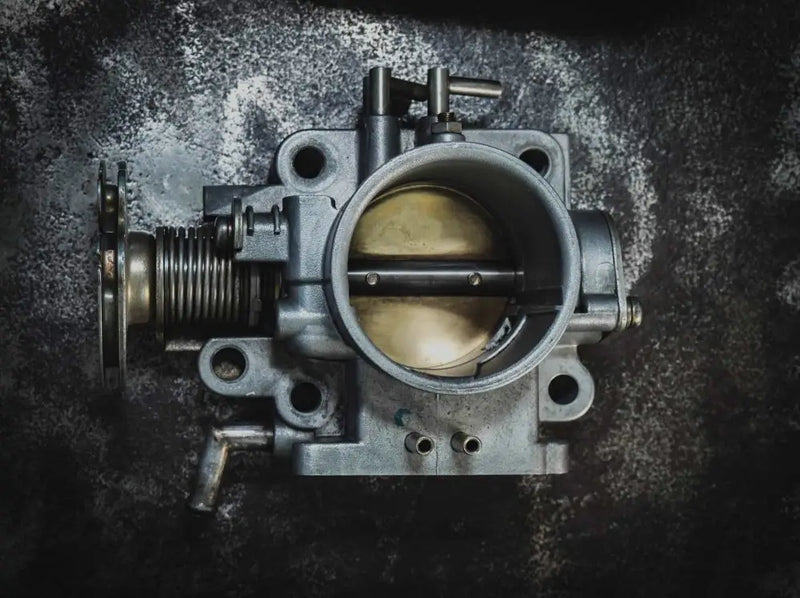

Understanding Your Throttle Body: More Than a Simple Valve

To truly grasp why a relearn is necessary, we must first understand the throttle body itself. Think of it as the air intake's main gateway, regulating the precise amount of air flowing into your engine. This isn't a simple mechanical connection anymore; modern throttle bodies are "drive-by-wire" systems. When you press the gas pedal, you're not pulling a cable; you're sending an electrical signal to the Engine Control Module (ECM), which then commands a small electric motor to open or close a butterfly valve inside the throttle body.

This constant, precise communication between the ECM and the throttle body is how your car maintains a perfect, steady idle, no matter the conditions. It's a delicate balance that relies on the ECM's stored data—its "learned values."

Over thousands of miles, a thin, almost invisible layer of carbon and oil vapor builds up on the inside walls of the throttle body and around the butterfly valve. The ECM is constantly working behind the scenes, using its sensors to monitor the engine's RPM and making tiny adjustments to keep the idle stable. It "learns" to compensate for this buildup, slightly adjusting the valve's resting position to maintain the correct airflow. This learned adjustment becomes part of the car's baseline programming.

The Unforeseen Consequences of a Clean Throttle Body

When you take the initiative to clean your throttle body—which is excellent preventative maintenance—you erase all that built-up gunk. The butterfly valve is now perfectly clean and can close more completely.

The problem? The ECM's programming is still based on the old, dirty condition.

The ECM attempts to position the valve according to its old "dirty throttle body" instructions. This results in too much air entering the engine at idle, a phenomenon known as a "lean condition." Because the fuel-air mixture is now incorrect, the engine's combustion process is disrupted, leading to a frustrating series of symptoms that make your car feel sick:

• A Wild, Unstable Idle: The engine's RPMs will surge and drop erratically as the ECM desperately tries to find a stable speed, often without success.

• Embarrassing Stalling: At stop signs or traffic lights, the engine may simply cut out, leaving you stranded and frustrated.

• Hesitation and Lag: When you press the gas pedal, the car might feel sluggish or hesitant, as the ECM struggles to adapt to the sudden change in airflow.

• The Dreaded "Check Engine" Light: In many cases, the computer will detect this lean condition or unstable idle and illuminate the Check Engine light, often storing a diagnostic trouble code related to idle speed control.

Ignoring these symptoms won't make them go away. The car might eventually, and very slowly, re-learn on its own over hundreds of miles, but in the meantime, you'll be dealing with an unreliable and inefficient vehicle. A proper throttle body relearn is the only way to quickly and correctly resolve this issue.

Performing a Throttle Body Relearn: A Scan Tool Is Your Key

While some people try to perform a throttle body reset by disconnecting the battery, this method is highly unreliable. It might clear some learned values, but it often fails to initiate the specific idle air volume learn procedure that your ECM needs. This is where a dedicated diagnostic tool like an OBD2 scanner with relearn function becomes not just a convenience, but an essential part of your toolkit.

A professional scanner communicates directly with the ECM, bypassing the guesswork and "pedal dances" of older methods. It allows you to command the car's computer to perform the necessary reset, guaranteeing a successful outcome. For a serious DIY mechanic, having a tool with this capability is a game-changer.

How to Relearn Throttle Body with the OBD2 Scanner?

Take our tool, CGSULIT SC530 as the example.

Step 1: Vehicle and Device Connection

Locate the OBD2 port in your vehicle. It is typically found under the dashboard on the driver's side.

Plug the CGSULIT SC530's cable into the port and turn the ignition key to the "ON" position (do not start the engine).

The scanner will power on automatically and display the main menu.

Step 2: Entering the Diagnostic Mode

On the main menu, select the Car icon.

The SC530 will then give you an option for an auto VIN scan or a manual vehicle selection. For most modern cars, the auto VIN function is the quickest and most reliable way to proceed, as it automatically identifies your exact vehicle.

If you choose to manually select, follow the on-screen prompts to select your vehicle's make, model, and year. This ensures the scanner loads the correct diagnostic software for your car.

Step 3: Accessing the Special Functions Men

Once the scanner has established communication with your vehicle, it will present a menu of diagnostic options. Navigate to and select the Engine Control Module (ECM). This module is responsible for managing the throttle body and is where the relearn function resides.

From the ECM menu, you will see a list of functions. Select Special Functions (or sometimes called 'Control Functions').

Step 4: Locating the 'Throttle Position' Function

Select this function to begin the procedure.

Step 5: Follow the tips on the scanner to complete it.

*Warm Tips:

Please note that the supported special functions will vary from specific year and model of the vehicle. If you're unsure, feel free to contact us for a compatibility check before making your purchase.

Conclusion: Beyond the Relearn

The satisfaction of a successful throttle body relearn is not just about the smooth idle you've restored. It's about empowering yourself as a car owner. It’s about understanding that a shaky engine isn't a sign of a deeper, expensive problem, but a simple electronic hiccup you can fix yourself.

An OBD2 scanner like the CGSULIT SC530 is far more than just a throttle body relearn tool. It's your personal window into your car's complex systems. It helps you diagnose a wide range of diagnostic trouble codes, check your emissions test readiness, and view live data stream to pinpoint tricky issues.

By taking the initiative to understand these procedures, you not only save money on mechanic bills but also build a new level of confidence in maintaining your vehicle. Don't let a simple cleaning job turn into a frustrating puzzle. With the right knowledge and a reliable tool, you can keep your car running as smoothly as the day it rolled off the lot.

Frequently Asked Questions (FAQ)

Q: Can I just disconnect my car's battery to perform a relearn?

A: While some sources suggest this, it's generally unreliable for modern cars. A battery disconnect may clear some learned values, but it rarely initiates the specific, structured relearn procedure required by the ECM. A dedicated OBD2 scanner with relearn function is the only sure way to get it right.

Q: Do I need to perform a throttle body relearn every time I clean it?

A: Yes, it is highly recommended. The ECM has learned to compensate for dirt and grime. Removing that buildup requires a relearn to reset those compensation values, preventing a rough idle or stalling from occurring.

Q: What if the relearn procedure fails?

A: If a relearn fails, it’s a strong signal that the issue isn't just a dirty throttle body. The problem could be a faulty throttle position sensor, a major vacuum leak, or a problem with the wiring. Use the CGSULIT SC530 to check for other diagnostic trouble codes and review the live data stream to get a clearer picture of your engine's health.

Q: Why is a manual "pedal dance" procedure unreliable?

A: Manual procedures are often highly specific to a single make and model year, and it’s very easy to get the timing wrong. Additionally, many newer vehicles have ECUs that simply won't respond to these manual sequences. A scan tool provides a universal, guided, and reliable process.
